Description
The Hi-Lift® X-TREME is for the serious Hi-Lift® user, offering the "top of the line" all-cast version (48" or 60" sizes) with a special top winch-clamp-spreader attachment that provides the ultimate in multi-use functionality.
The X-TREME Top Clamp replaces the top clamp-clevis of the standard Hi-Lift® models and provides the ability to winch, clamp, and spread up to 5,000 lbs.
Features
- All-Cast Construction
- 7000lb (3175.14kg) Tested Capacity
- Available in 48", & 60" Heights. (122, & 152cm)
- Lifts, Winches, Clamps, & More
- A must-have for the serious Hi-Lift user!
Shipping Dimensions.60inches Jack
148cm x 25cm x 10cm (LxWxH)
Shipping Dimensions.48inches Jack
120cm x 25cm x 10cm (LxWxH)
Specifications
|

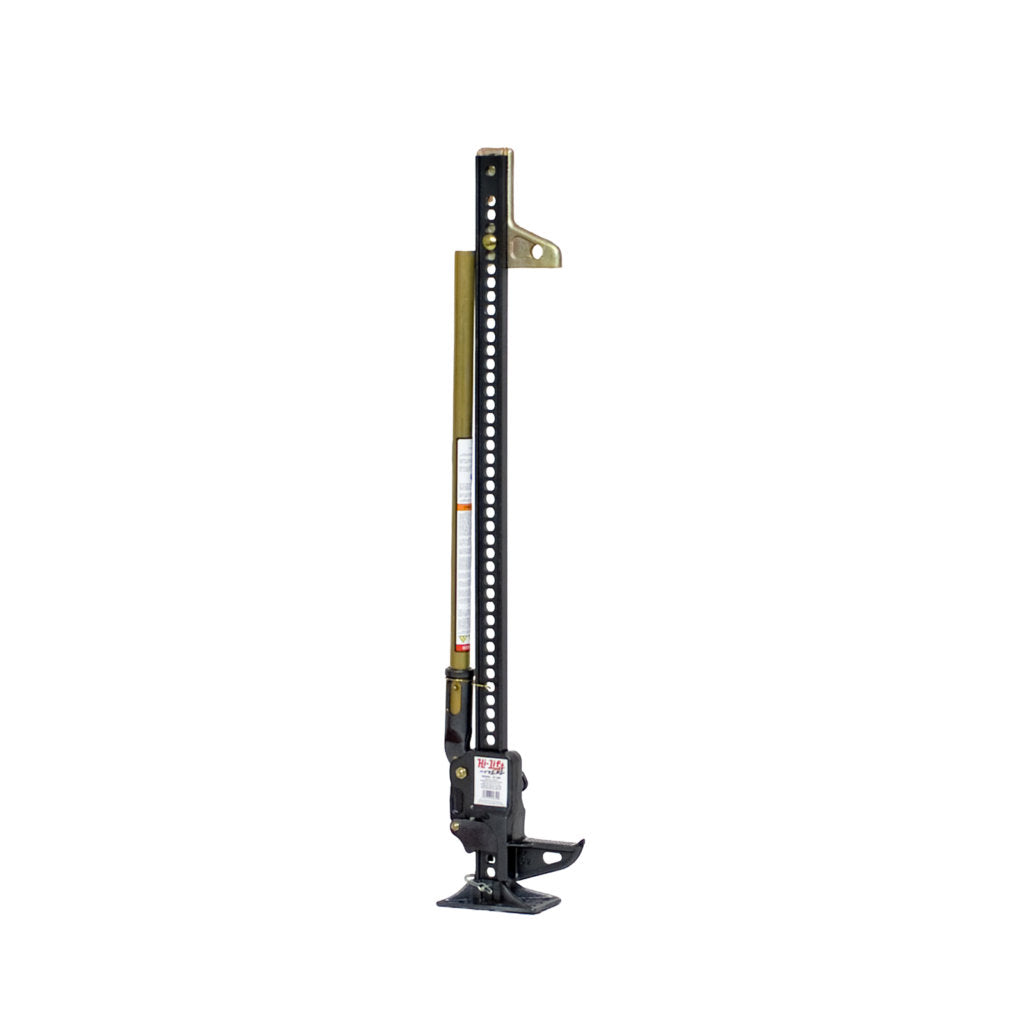

XT-485 |

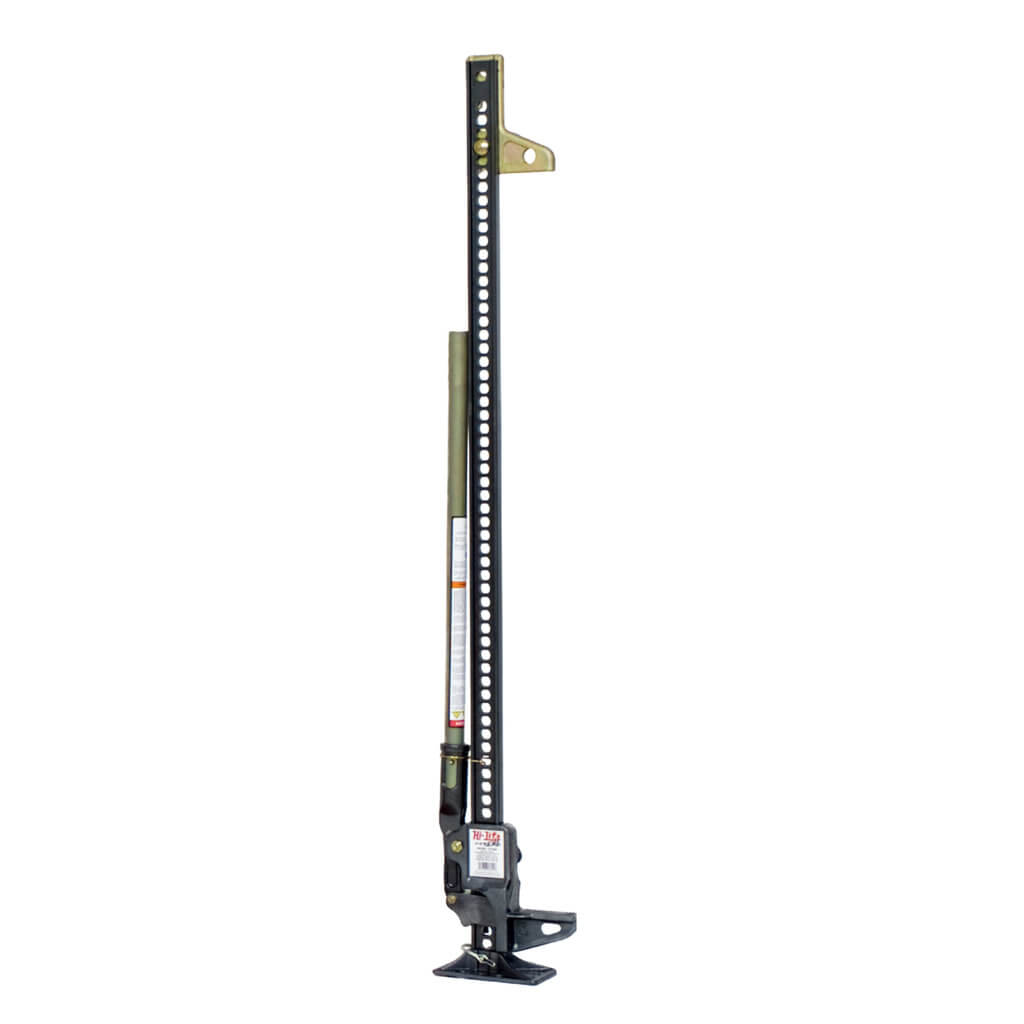

XT-605 |
|
|
Size |
48” (122 cm) |
60” (152 cm) |
|
Min. Lift Height |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
|
Max. Lift Height |
38.63" (98.12 cm) |
48.75" (123.8 cm) |
|
Overall Height |
50.75" (128.91 cm) |
61.75" (156.85 cm) |
|
Width |
5" (12.7 cm) |
5" (12.7 cm) |
|
Depth |
9.63" (24.46 cm) |
9.63" (24.46 cm) |
|
Rated Load (RL) |
4,660 lbs (2,113 kg) |
4,660 lbs (2,113 kg) |
|
RL on upper 12" (30.5cm) |
- |
2,660 lbs (1206 kg) |
|
Tested Load (TL) |
7,000 lbs (3,175 kg) |
7,000 lbs (3,175 kg) |
|
TL on upper 12" (30.5cm) |
- |
4,000 lbs (1,814 kg) |
|
Winching Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
|
Clamping Capacity |
5,000 lbs (2,268 kg) |
5,000 lbs (2,268 kg) |
|
Weight |
28.16 lbs (12.77 kg) |
31.31 lbs (14.2 kg) |
