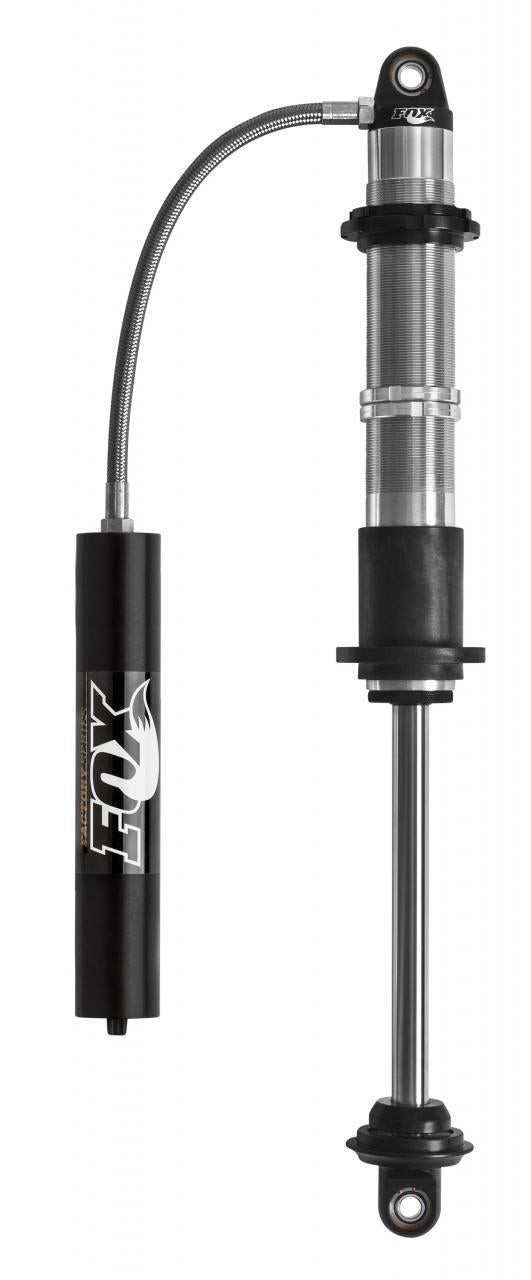

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
| Body |
Smooth bore and honed seamless steel |
| Body Plating |
Zinc plated for a long-lasting finish |
| Components |
Black anodized, CNC machined 6061-T6 billet aluminum |
| Piston |
7075 hard-anodized high-flow aluminum piston* |
| Valving |
Tunable, velocity sensitive deburred valve shims |
| Seals |
High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal* |
| Shafts |
Chrome steel |
| Bearing |
Spherical, PFTE-lined, heat-treated alloy steel |
| Spring |
Not Included |
| Options |
Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments |
Spring preload ring |
|
Dual stage crossover ring |
| Extended |
31.100 |
| Compressed |
19.100 |
| Top Mount |
Eyelet |
| Bottom Mount |
Eyelet |
| Reservoir |
Remote |
| Reservoir Size |
2.0 x 11 |
| Hose |
-8 x 17.75 |
| Mounting |
1/2 x 1.25 |
| Valving |
50/70 |
