12v water pump,mini water pump,diaphragm booster pump
Voltage:12V
Open Flow:1.3-1.4GPM / 5.0-5.3LPM
Shut-off Pressure:60-100PSI / 4.1-6.9BAR
Priming Capabilities:6 feet (1.8 m) suction lift
Max Recommended Temperature:140° F (60° C)Max.
Material:EPDM(Valves) / Santoprene(Diaphragm)
Ports:3/8" hose Barb (or Custom O-Ring)

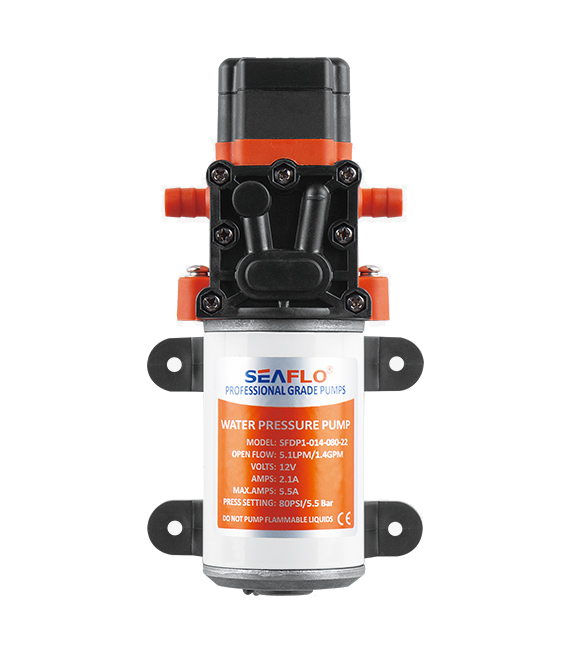

The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.4 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
MORE FEATURES & BENEFITS
• Continuous Duty
• Capable of supplying 1-2 fixtures
• By-pass technology reduces cycling
• On- demand pressure switch
• Adjustable pressure setting
• Capable of up to 100 PSI
• Run dry safe
• Quiet operation
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
• 18 AWG, 9.5" (24 cm) long Leads
