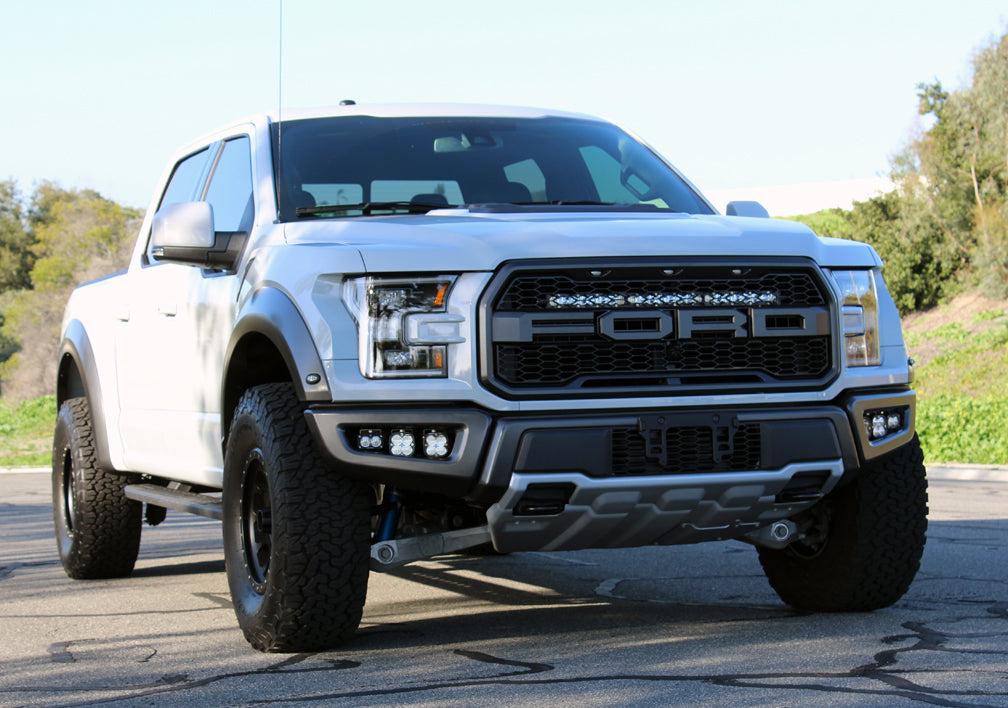

Baja Designs S8 LED Light Bar Kit for Ford Raptors (2017 and On)
This all-in-one-package comes with everything you need for an easy installation onto a 2017-2020 Ford Raptor. The 30’ S8 LED light bar for trucks offers a unique, slim design so you have plenty of space for other addons without sacrificing any power.
The driving and spot combination lighting pattern offers a focused beam for distance driving and 42° of peripheral driving for safer cornering with a total of 19,050 lumens of power. The brackets and wiring hardware install directly onto factory-equipped mounting locations without drilling or other modifications, and they blend in smoothly for added visual appeal.
Baja Designs creates LED truck lights and light bars for safe off-road driving at night and in poor weather conditions. We utilize color temperatures that mimic natural daylight so you can see clearly without straining your eyes and reduce driving fatigue. Purchase our Ford Raptor lights or contact one of our experts for technical support to find the right setup for aftermarket bumpers or other vehicles.
Note: Kit will not work with ADD Adaptive Cruise Control relocation kit.
Lumens: 19,050 Utilizing 24 Cree LEDs
Wattage/Amps: 180W / 12A
Dimensions: 30” x 3” x 1.6”
Weight: 6.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
(S8 Patent D780,964)
- 2017-2020 Raptor Mounting Brackets
- Required Hardware
- 30" S8 Driving/Combo
- Wiring Harness
92cm x 13.50cm x 16cm (LxWxH)Weight 5kg
