- 2.5-4" Lift Rear Shocks
-

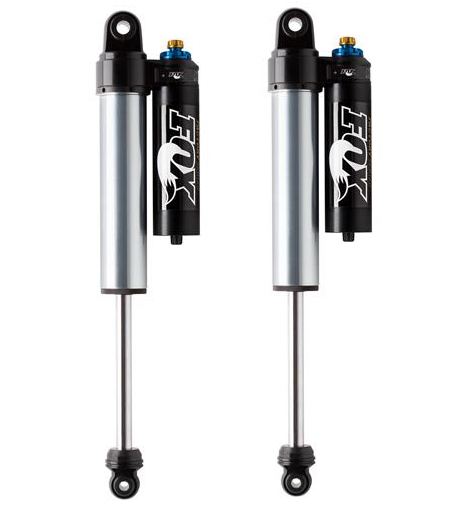

Sold in pair
- 2007-2018 model years
- Dual Speed Compression Adjusters

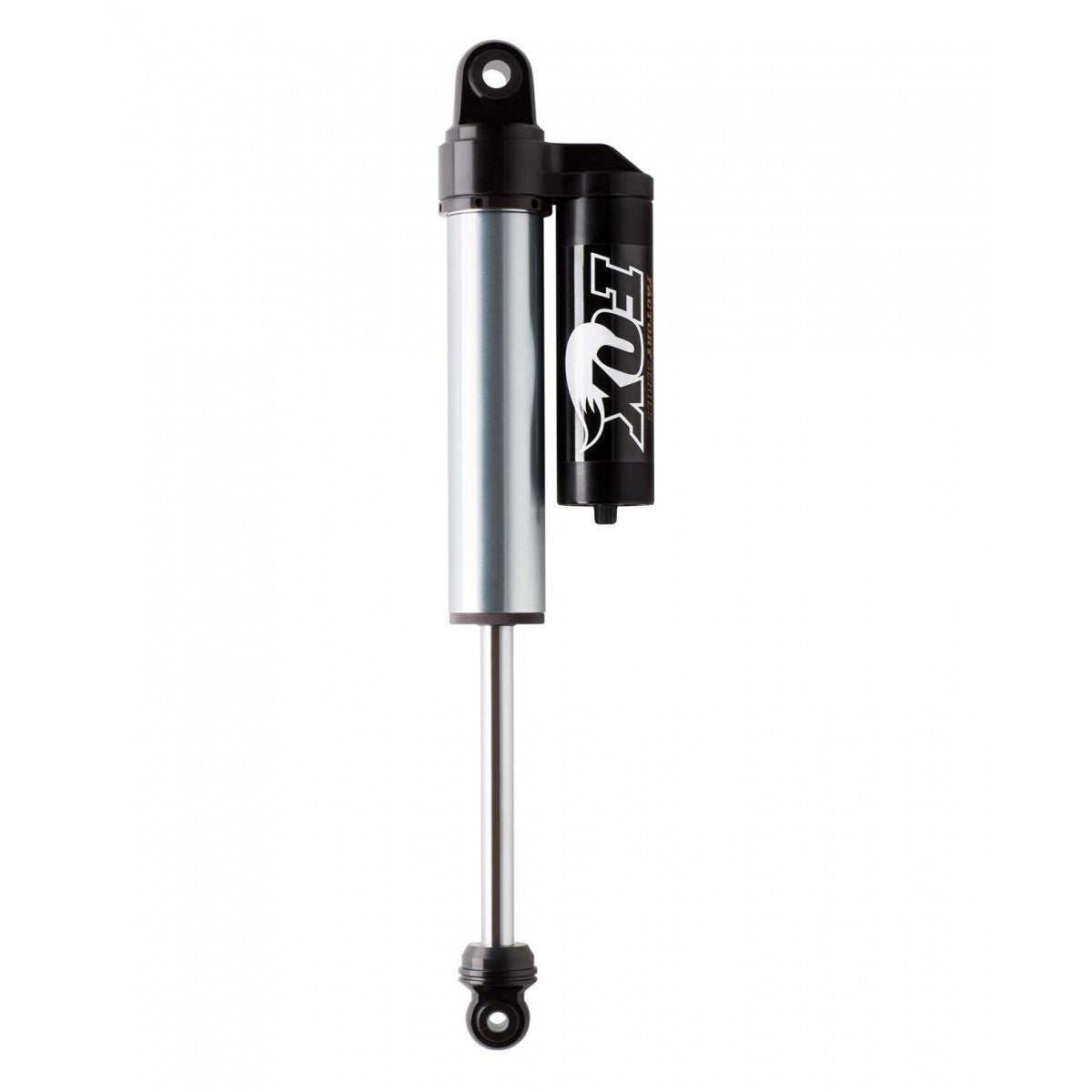

Factory Race Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.
External reservoir allows for increase oil and nitrogen capacity while delivering striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Factory Series shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Factory Race Series 2.5 Reservoir shocks deliver.
| Body |
2.5" smooth bore zinc plated seamless steel body |
| Body Plating |
Zinc-plated and double-clear coated for long lasting finish |
| Reservoir |
2.5" Smooth bore and honed seamless alloy reservoir |
| Components |
Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft |
7/8" hard chrome plated heat-treated alloy steel |
| Piston |
Race-developed high-flow piston design |
| Valving |
Application specific valving to maximize performance |
| Seals |
Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil |
JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing |
PTFE-lined, heat-treated, alloy steel spherical |
| Adjuster Type |
DSC - Dual Speed Compression |
| Extended |
28.040 |
| Compressed |
17.200 |
| Travel |
10.840 |
| Top Mount |
Bar Pin |
| Bottom Mount |
Eyelet |
| Shipping Dimensions |
90cm x 50cm x 25cm (L x W x H)
|
