- 2-3" Lift Rear Shock
- Sold individually
- Jeep Wrangler JL

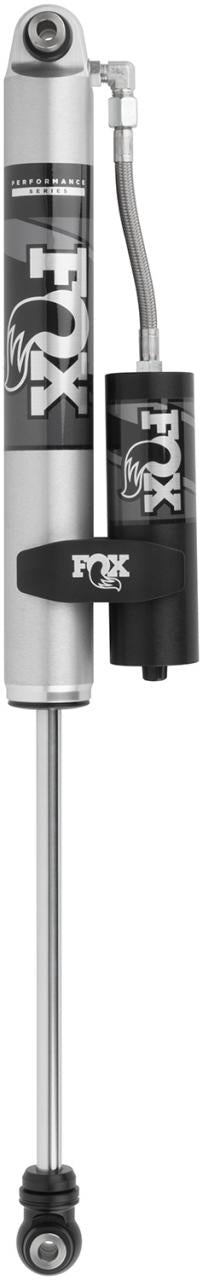

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
| Body |
2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| Body Plating |
Clear-anodized for a durable finish |
| Reservoir |
2.0" Smooth bore 6061-T6 Aluminum is hard anodized |
| Components |
Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft |
5/8" hard chrome plated heat-treated alloy steel |
| Piston |
Race-developed high-flow piston design |
| Valving |
Application specific valving to maximize performance |
| Seals |
Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil |
JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings |
Quiet nitrile rubber allows for increased suspension articulation |
| Extended |
29.020 |
| Compressed |
17.400 |
| Travel |
11.620 |
| Top Mount |
Eyelet |
| Bottom Mount |
Eyelet |
| Fitment notes |
Includes Billet Reservoir Clamp |
| Shipping Dimensions |
104cm x 15cm x 7cm (L x W x H) |
