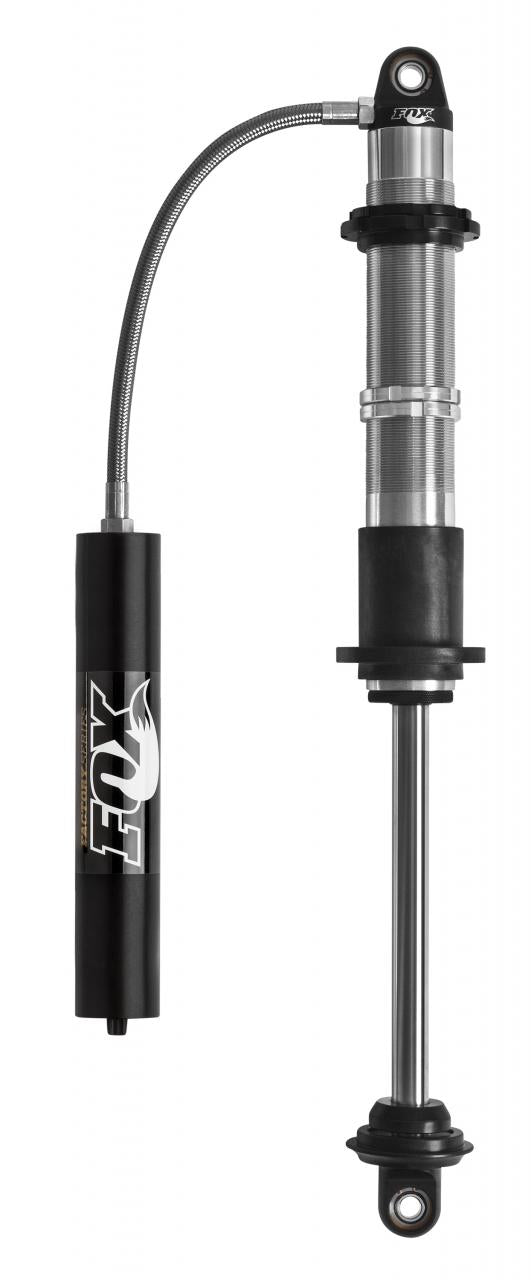

Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
|Body||Smooth bore and honed seamless steel|
|Body Plating||Zinc plated for a long-lasting finish|
|Components||Black anodized, CNC machined 6061-T6 billet aluminum|
|Piston||7075 hard-anodized high-flow aluminum piston*|
|Valving||Tunable, velocity sensitive deburred valve shims|
|Seals||High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal*|
|Bearing||Spherical, PFTE-lined, heat-treated alloy steel|
|Options||Custom compression and rebound valving available (Add -1 to end of part number)|
|Adjustments||Spring preload ring|
|Dual stage crossover ring|
|Reservoir Size||2.0 x 11|
|Hose||-8 x 17.75|
|Mounting||1/2 x 1.25|
