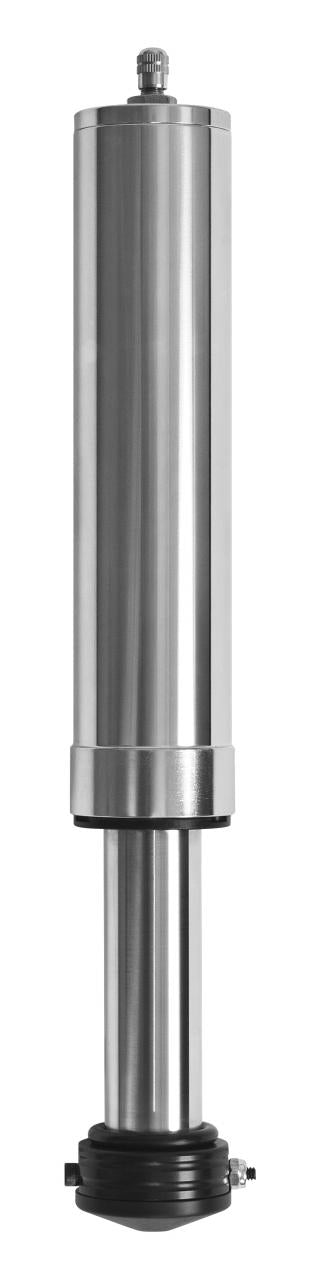

FACTORY RACE 2.0 X 2.5 BUMP STOP
Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.
The built-in FOX Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.
| Body |
Smooth bore and honed seamless steel |
| Body Plating |
Zinc plated and clear coated for a long lasting finish |
| Components |
Black anodized, CNC machined 6061-T6 billet aluminum |
| Valving |
Tunable, velocity sensitive deburred valve shims |
| Seals |
Redundant sealing pack system, main seal, wiper seal, scraper seal |
| Pad |
Replaceable Delrin® strike pad |
| Shafts |
Hard chromed 4130 steel |
| Options |
Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments |
Nitrogen Pressure |
| Extended |
11.440 |
| Compressed |
8.900 |
| Travel |
2.540 |
| Top Mount |
Eyelet |
| Bottom Mount |
Eyelet |
| Reservoir |
Emulsion |
| Mounting |
|
| Valving |
STANDARD |
| Shipping dimensions |
|
