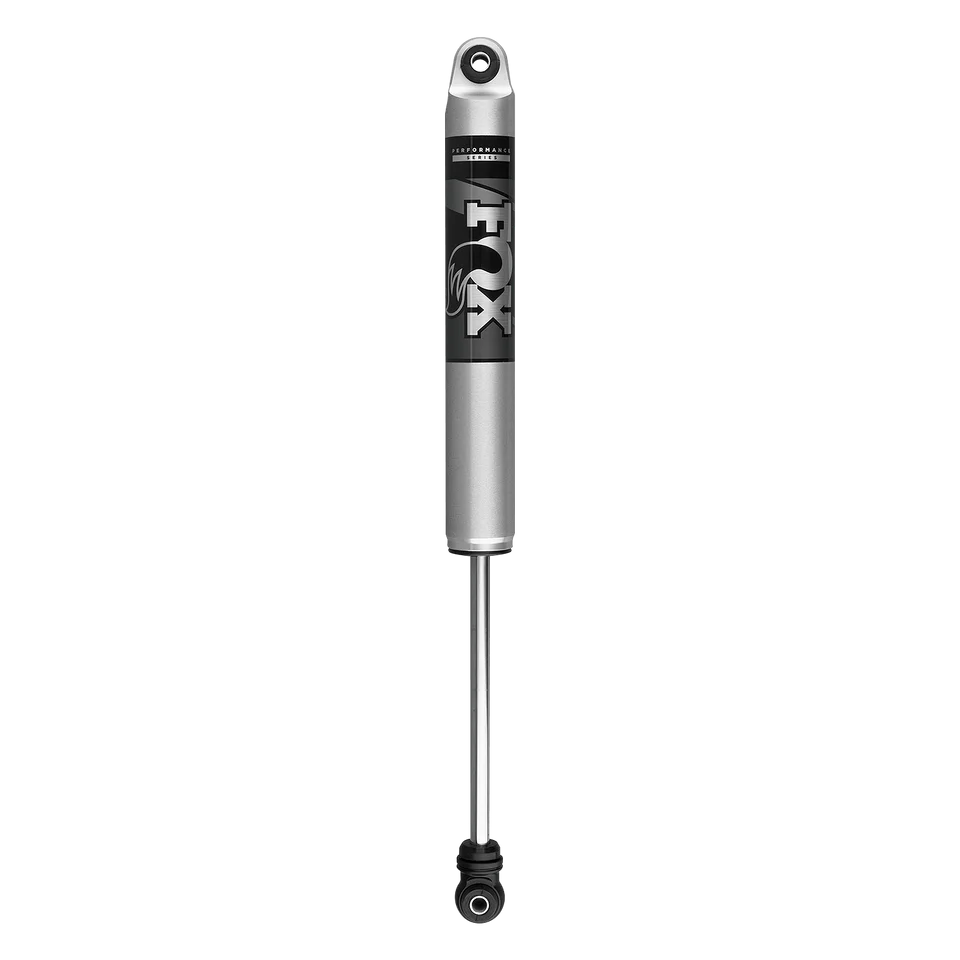

FOX Performance Series 2.0 coil-over and smooth-body internal floating piston (IFP) shocks are a bolt-on solution tuned for the Ford Ranger. Level your vehicle without straining ball joints or linkages to maintain OEM reliability and vehicle behavior.
A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. All FOX shocks are fully serviceable and re-valveable, built to last the vehicle's lifetime.
Bolt-on 2.0 Performance Series shocks to ride in comfort and increase damping capacity.
Specifications.
| SERIES |
Performance |
| TRAVEL |
8.69 |
| BODY |
2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING |
Clear-anodized for a durable finish |
| COMPONENTS |
Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT |
5/8" hard chrome plated heat-treated alloy steelawd |
| EXTENDED LENGTH |
24.99 |
| COMPRESSED LENGTH |
16.3 |
| TOP MOUNT |
Eyelet |
| BOTTOM MOUNT |
Eyelet |
Fits.
| Year |
Make |
Model |
Drive Type |
Lift Height |
| 2024 |
Ford |
Ranger |
4WD |
0-1 |
| 2025 |
Ford |
Ranger |
4WD |
0-1 |
