LIFT 2.5-4"

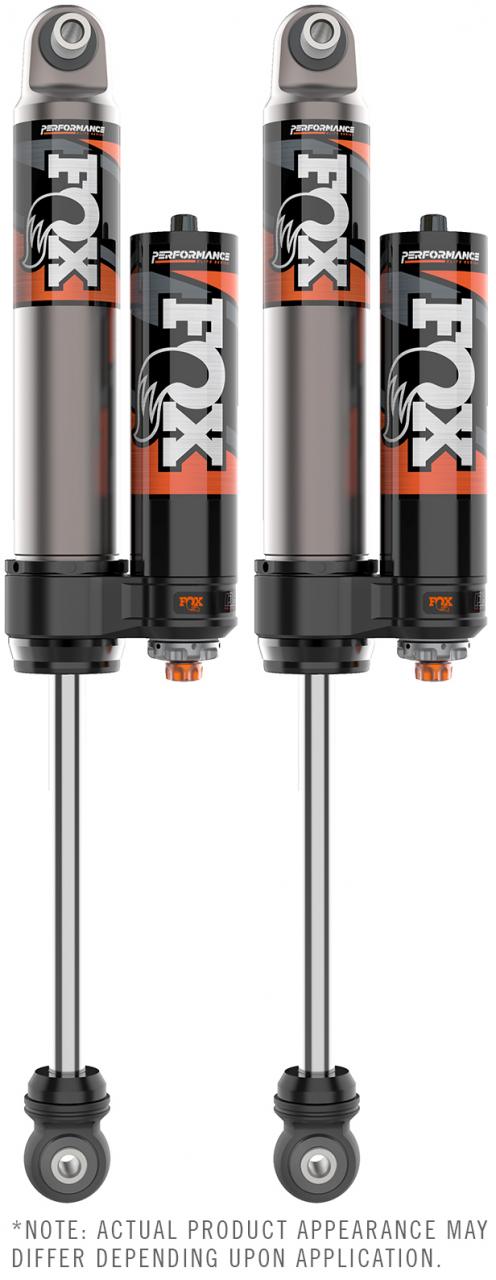

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
| Body |
2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| Body Plating |
Hard-anodized for a durable finish |
| Reservoir |
External reservoir design separates shock oil from the high-pressure nitrogen |
| Components |
Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft |
7/8" hard chrome plated heat-treated alloy steel |
| Piston |
Race-developed high-flow piston design |
| Valving |
Application specific valving to maximize performance |
| Seals |
Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bearing |
PTFE-lined, heat-treated, alloy steel spherical |
| Adjuster Type |
DSC - Dual Speed Compression |
| Extended |
28.060 |
| Compressed |
17.280 |
| Travel |
10.780 |
| Top Mount |
Bar Pin |
| Bottom Mount |
Eyelet |
| Replaces Part Number |
883-26-016 |
