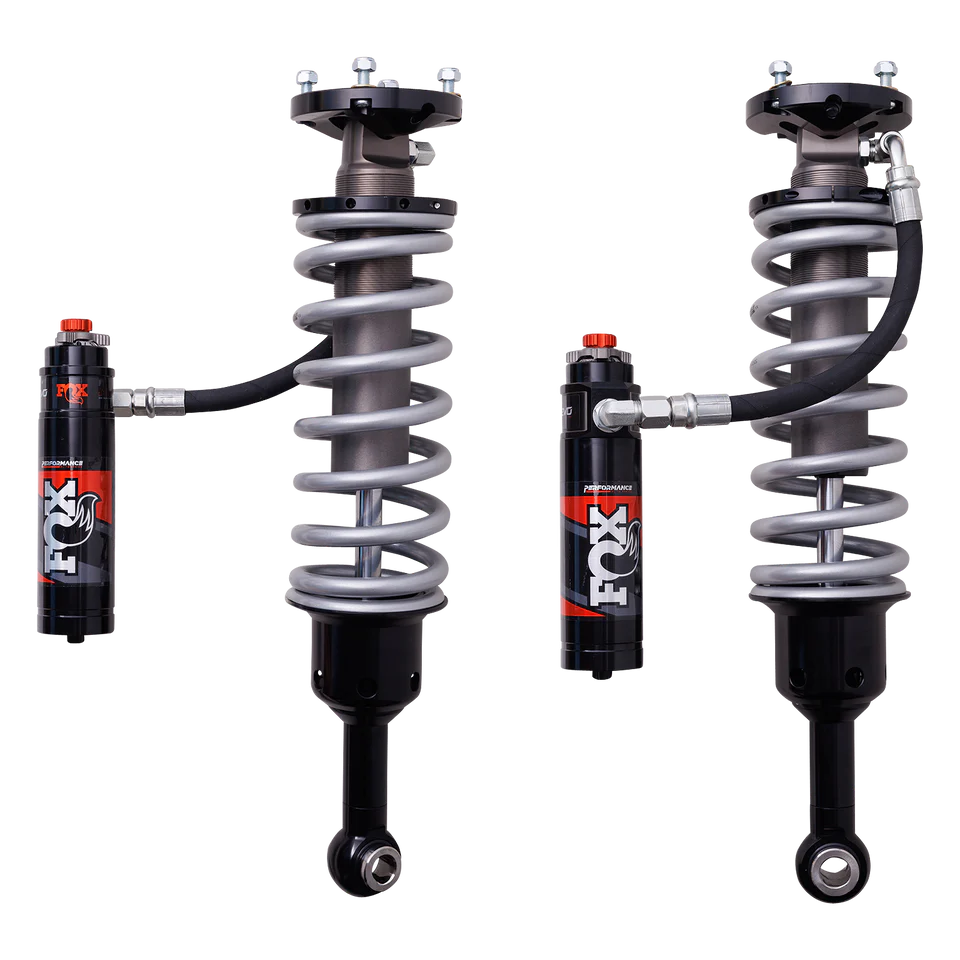

FOX Performance Elite Series 2.5 shocks improve the LC250, GX550, and 4Runner chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation.
Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
Specifications.
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
7/8" hard chromed steel shafts
Vehicle-specific tuning maximizes performance
Redundant sealing pack system: main seal, wiper seal, scraper seal
External reservoir, with DSC EVO adjuster
|
| SERIES |
Performance Elite |
| TRAVEL |
6.74 |
| EXTENDED LENGTH |
24.38 |
| COMPRESSED LENGTH |
17.64 |
| TOP MOUNT |
OEM |
| BOTTOM MOUNT |
Eyelet |
Fits.
| Year |
Make |
Model |
Drive Type |
Position |
Lift Height |
Comments |
| 2024 |
Lexus |
GX550 |
All |
Front |
1.5-3 (38-76mm) |
| 2025 |
Lexus |
GX550 |
All |
Front |
1.5-3 (38-76mm) |
| 2025 |
Toyota |
4Runner |
All |
Front |
1.5-3 (38-76mm) |
| 2024 |
Toyota |
Land Cruiser |
All |
Front |
1.5-3 (38-76mm) |
250 Series |
| 2025 |
Toyota |
Land Cruiser |
All |
Front |
1.5-3 (38-76mm) |
250 Series |
