The Heavyweight Series of winches from Warn are designed to do some serious work. Whether its extracting your truck from a mud hole, pulling a downed tree, or helping a neighbor out, you can trust on it to get the job done. With a weight rating of 12,000 pounds and 100 feet of Spydura synthetic rope, you won't be disappointed in the performance of this winch.
The WARN combines a proven WARN large-frame winch with 100 Foot of 3/8 Inch state-of-the-art Spydurasynthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. The winch's 12,000 Pounds pulling capacity makes it great for large pickups and heavier SUVs.
FEATURES & BENEFITS:
- 12,000 Pounds Capacity
- Large-Frame Winch Architecture Mounts Feet Forward
- Contactor Control For The Ultimate In Reliable Electronics
- Powerful, Efficient Series-Wound Motor

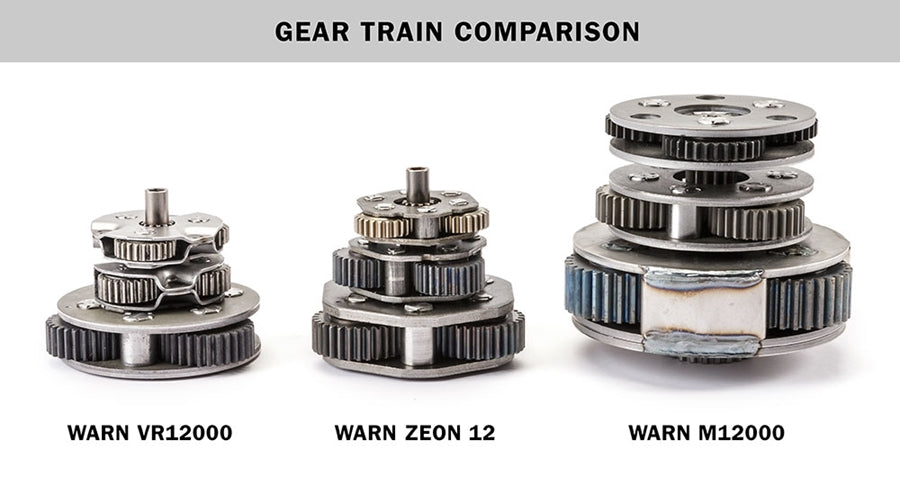

- Durable, Smooth Three-Stage Planetary Gear Train
- Best-In-Class Cone Brake
- Limited Lifetime Warranty
SPECIFICATIONS:
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommended Use: Vehicle Recovery
- Voltage: 12 Volt
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 261:1
- Free Spooling: Yes
- Brake Type: Mechanical Cone
- Line Diameter: 3/8 Inch
- Line Length: 100 Feet
- Line Material: Synthetic
- Fairlead Type: Hawse
- Conforms to J706 Standards: No
- Remote Type: Wired Remote
- Mounting Hole Quantity: 4
- Operation Type: Automatic

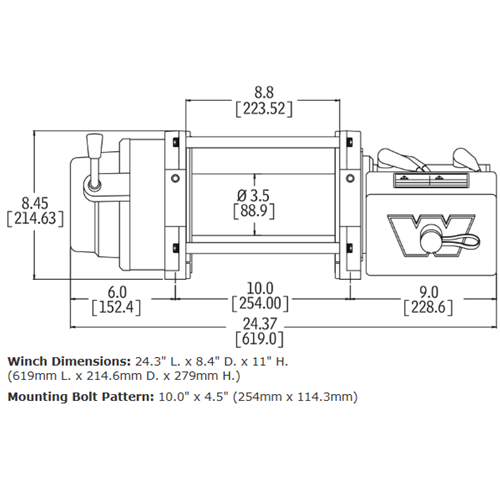

- Mounting Pattern Length: 10 Inch
- Mounting Pattern Width: 4-1/2 Inch
- Includes Mounting Hardware: Yes
- Color: Gray

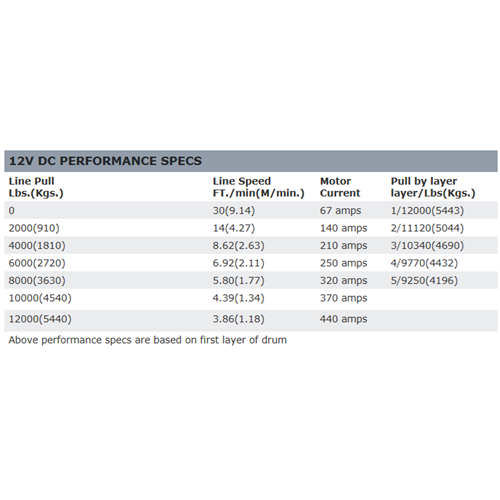

- Max Line Pull / Line Speed: 12000 Pound/ 3.9 Feet Per Minute
- Max Amp Draw / Line Pull: 440 Amp Draw/ 12000 Pound
Shipping Dimensions.
66 x 41 x 26 cm (LxWxH)
