XL-R 80 LED Auxiliary Light Pod Pair - Universal

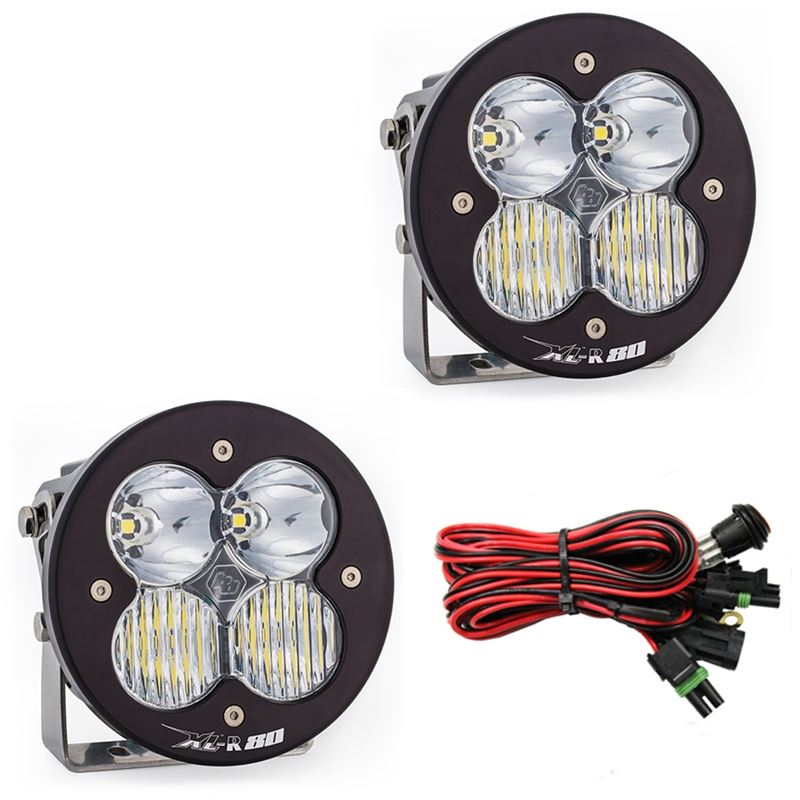

The Baja Designs XL-R80 auxiliary LED light pair will take your off-road lighting to the next level with greater visibility and increased brightness. The XL-R80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light. Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature, a powder coated housing and an anodized round bezel for that classic round look. This two-light kit comes with a wiring harness and all necessary mounting hardware to get you up and running quickly. Designed for users who want reliable off-road lighting solutions.
Lens pattern options:
Driving Combo: Maximum trail coverage in a single light. The driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near field applications in lighting zones 1 and 2 and distance in zone 3.
Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards - making it easier to navigate through tight turns, winding trails, or through wooded areas.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Amperage Rating (A) |
5.79 |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
9,500 |
Housing Color |
Black |
Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Lens Material |
Hardcoated Polycarbonate |
Light Quantity |
2 |
Lighting Modes |
High Beam/Dimming Feature (20%) |
Lighting Quantity |
4 |
Lighting Technology |
Cree LED |
Lighting Type |
Forward Projecting |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
XL-R 80 LED Light Pod Pair w/ Wiring Harness |
Universal or Specific |
Universal |
Wattage (W) |
80 |
Wiring Harness Included |
Yes |
80w / 9,500 Lumens / Designed for Near Field & Midfield Applications
Shipping Dimensions.
30.50cm x 27cm x 14cm (LxWxH)
